Yamaha A-S301 Integrated Amplifier

Designed for excellent sound quality, with a beautiful appearance. An integrated amplifier with the advantage of digital inputs.


• 60 W x 2-ch (20 Hz – 20 kHz)



• Digital audio inputs for TV or Blu-ray™ player



• Pure Direct mode for greater sound purity



• ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts



• I/O (input to output) direct symmetrical design



• ART (Anti-Resonance and Tough) Base

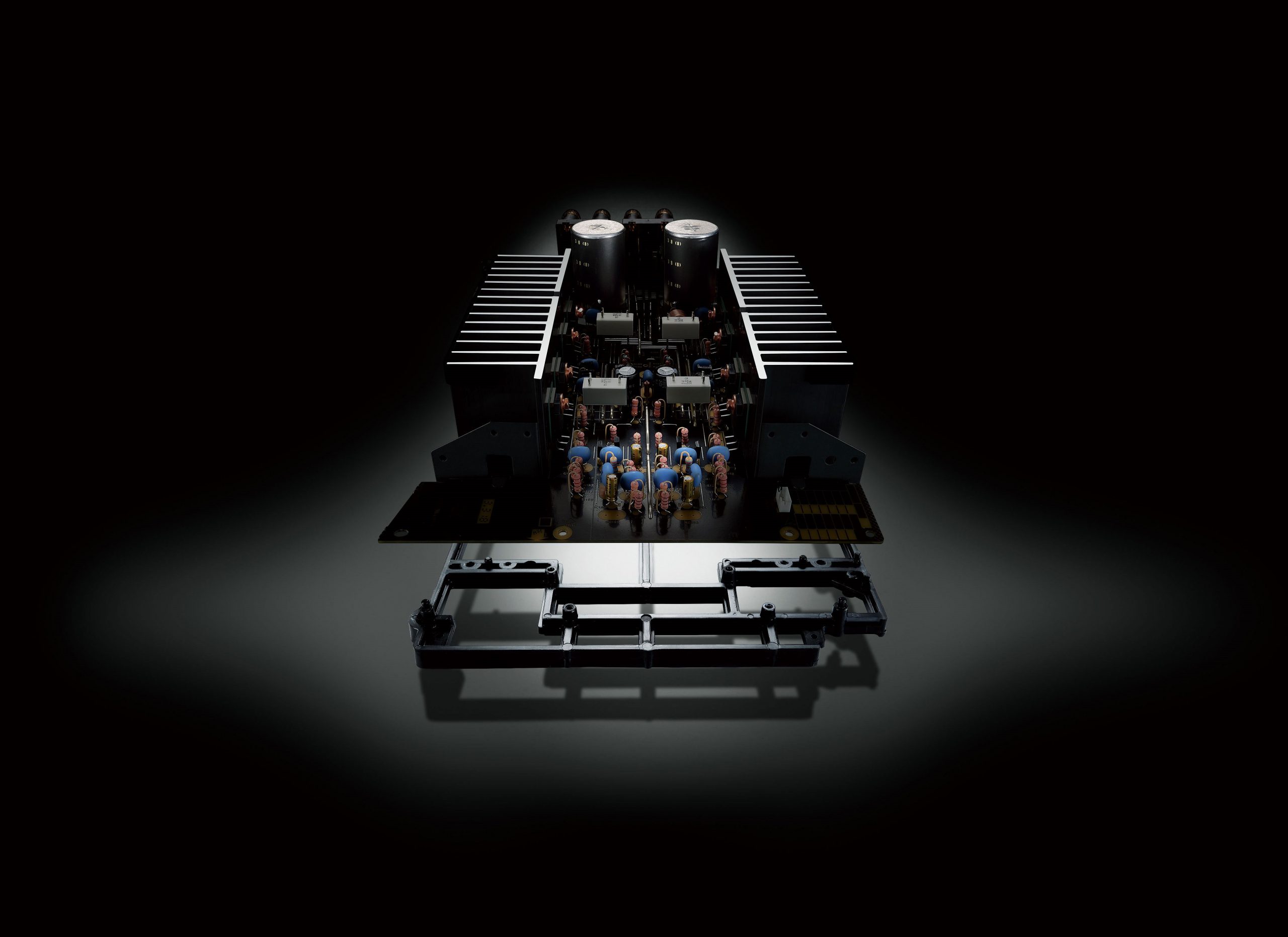

• Custom-made power transformer / 6,800uF block capacitors / extruded aluminum heat sinks



• Simple yet sophisticated design (aluminum front panel)



• Continuously variable loudness control

Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)		60 W + 60 W (0.019% THD)
High Dynamic Power/Channel (8/6/4/2 ohms)		100 / 120 / 140 / 150 W
Frequency Response		10 Hz – 100 kHz +/- 1.0 dB
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)		0.019% (50 W / 8 ohms)
Signal-to-Noise Ratio (CD)		99 dB (input shorted, 200 mV)
Damping Factor		210
Digital Input		Yes (optical / coaxial)
Audio In / Out		8 / 2
Subwoofer Out		Yes
Pure Direct		Yes
ToP-ART		Yes
DC out		Yes
Standby Power Consumption		0.5 W
Power Management (Auto Power Standby)		Yes
Dimensions (W x H x D)		17-1/8″ x 6″ x 15-1/4″
Weight		19.8 lbs.
