Supra Quadrax Combicon Speaker Cables

QUADRAX COMBICON – Loudspeaker Cable with Emphasis

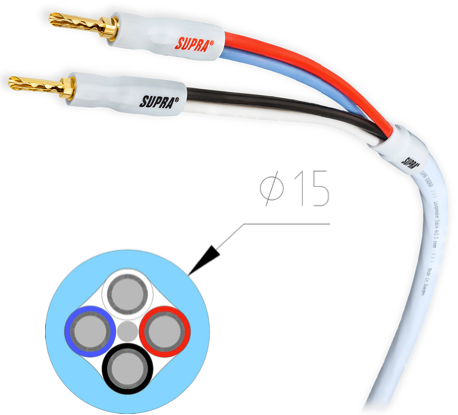

with Supra CombiCon crimp connectors, Star Quad single-wire (2>2) full range version
The tube conductor design means that 120 individually tin plated strands in a braid forms a tube around a PP plastic core. It forces the music signal to meet the same crossection area irrespective of frequency. The higher frequency, the further out in the conductor perimeter the law of physics forces the signal, hence resulting in une- qual conductivity properties for the various frequencies. If adressed in the cable design with tube formed leads we manage the differencies efficiently allowing for a flat frequency response, ultra-fast transients and transparen- cy. If configured in a Star Quad conductor formation (single wire/full range) RFI pickup and outgoing magne- tic fields (lowered induktance) are almost completely cancelled out, thanks to the symmetry of current in the opposite conductor pairs. Finally the strand tin plating will counteract any current jumps tendencies between the strands thus creating a diode effect followed by corresponding phase shift.

CombiCon is pressed under high pressure onto the conductor. Done correctly, it brings the material together into an airtight, homogeneous and electrically invisible joint, almost similar to fusion welding.

CONSTRUCTION Cable:
Cross section Area: Conductors:

Jacket: Diameter: Colour: Marking: Configuration: Connector:

– Material:
– Wire connection:
– Bending protection: Cable splitt:
Signal direction: Packing:

QUADRAX 4×2.0

2×4.0mm2 / AWG 11
+ blue/red, – black/white
PVC GA78, round
15 mm
Iceblue (other colours upon order)
SUPRA QUADRAX 4×2.0 > Made in Sweden > Meter mark Stereo pair, 2 > 2 connectors, Right = red, left = black Combicon, 8 x Banana pin & 8 x spades included
24K gold plated Copper
Crimp, 8 x Combicon body CB03 M6 with Crimp claw Sleeve 4 x S9 red, 4 x S9 black
20cm, Sleeve 2 x S15 red, 2 x S15 black
Follow the arrows > amplifier > Speaker
Carton 35x35x10 cm
