Supra EFF-ISL Interconnect Cables

$143.50$251.00


Description
• Silverplated tube lead & low inductance • Low skin-effect has a dynamic & clearly audible influence
• Individual conductors Aluminum screens • A multi test winner

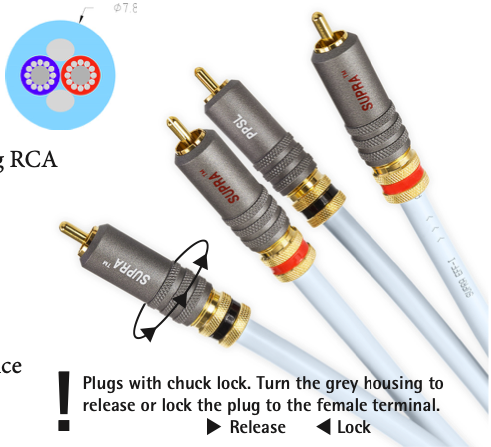

High End Analogue Interconnect Cable with chuck locking RCA Flawless signal transfer of even the most subtle music details is always the goal. There are electric properties that needs to be addressed prior to reaching the goal; capacitance, phase, skin-effect & shielding. The purity of conductors, dielectric choice, plating quality is generally sub-standard even though they might appear high-end. The skin-effect is the physical event forcing higher frequency signals flow closer to the conductor surface. This means that low & high frequency impedance are not equal and therefor affects the signal level & phase. It has a profound dynamic & clearly audible influence because an audio signal is in principle nothing but an infinite number of frequ- encies at an infinite number of levels. In order to minimize the skin-effect, the EFF-I is designed according to our Equalized Frequency Flow (EFF) technique. Around a plastic core, the strands are wound forming a conductor tube, in turn forcing all frequencies through the same cross section area well tuned for the entire audible range. The result is a maintained frequency respons as from the source without any level changes like treble roll-off or phase shift. Fur- ther the strands are silver plated to provide for ultra-high frequencies & are insulated using PE, providing the lowest capacitance. Finally there must not enter any RFI destroying all efforts to maintain original signal integrity & our aluminized PET foil is a high bandwidth efficient shield keeping noise outside. Equipped with our best fully shielded single-end connectors Supra PPSL. The connector features chuck locking strain relief to the chassis female RCA & the cable.

CONSTRUCTION Cable: Jacket: Diameter:
SUPRA EFF-I

page1image4241128464 page1image4241128768

PVC GA78, round 7.8mm Iceblue (other colours upon order) SUPRA EFF > Made in Sweden > Meter mark Semi-balanced, the screen is only connected at the source end SUPRA PPSL 2 RCA Male > 2 RCA male, red/white Pins of 24K Gold plated OFC Anthracite grey Chuck locking strain relief to the chassis female RCA & the cable Almit SR34 Super Follow the arrows > Source > Receiver Blister 25 x 21.5 x 4.8cm

Colour: Marking: Screen connection: Connectors: – Type: – Material: – Colour: – Locking: Solder tin: Signal direction: Packing: Special length are made upon order, the only additional cost is the meter price per extra meter.

Read More
SKU SPEFFI235205
