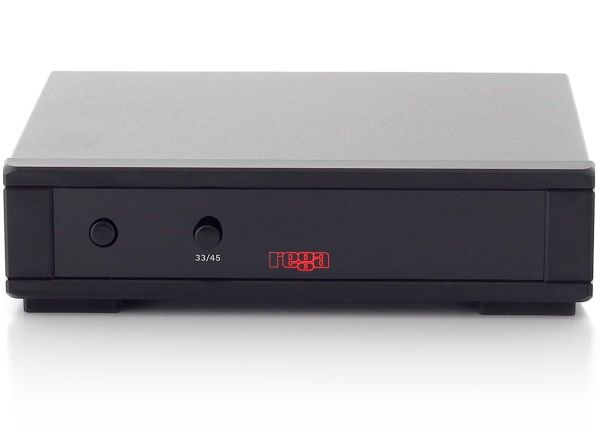

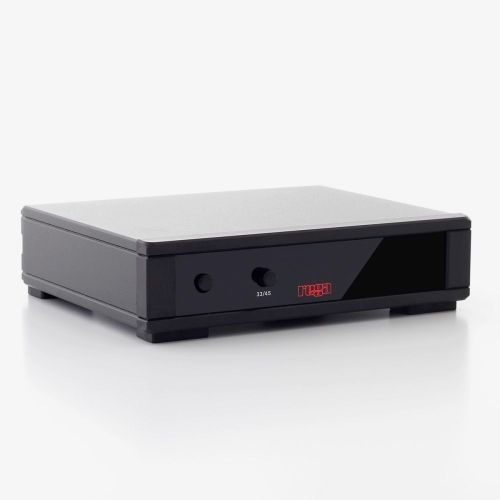

Rega NEO PSU MkII Power Supply

NEO PSU MK2

The Neo MK2 PSU is compatible with the following Rega turntable models: P3-24 / RP3 / Planar 3 2016-current / RP6 / P5 / P7 / RP40 special edition / RP8 Or any older Rega turntable fitted with our aftermarket 24v upgrade kit. Using the same DSP (digital signal processing) generator found in the Planar 10 power supply the Neo MK2 is built upon a high stability crystal. The DSP generator will divide the accurate signal from the crystal to the exact frequency required to turn the platter at the selected speed whilst producing a near perfect sinusoidal waveform to drive the 24v motor. Fine speed adjustment is made via the rear panel using the supplied custom Neo trim tool (supplied). Planar 6 and Planar 8 turntable models which include the Neo will now ship with the MK2 Neo supplied as standard.

TECHNICAL SPECIFICATIONS



Output to motor bi-phase



24 V AC protected by resettable fuse



Power consumption



7.2 W



Voltage



24 V AC



Power supply



Rega PS1 only



Speed control step size



0.01 RPM



PS1 (UK)



Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC



PS1 (EU – Euro 2 pin)



Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC



PS1 (American)



Input 115-120 V ~ 60 Hz / Output 24 V ~ 350 mA AC



PS1 (Australian)



Input 230 V ~ 50 Hz 0.07 A / Output 24 V ~ 350 mA AC



PS1 (Japan)



Input 100 V ~ 50/60 Hz / Output 24 V ~ 350 mA AC



PS1 (Korea)



Input 220 V ~ 60 Hz 0.07 A / Output 24 V ~ 350 mA AC
