Rega Nd5 Moving Magnet Cartridge

$675.00


Description

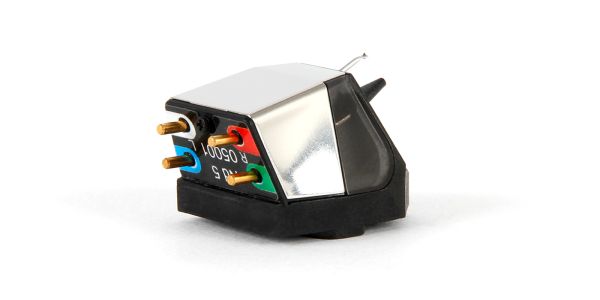

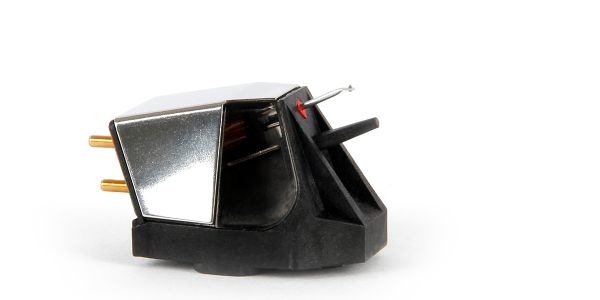

The all new Nd5 moving magnet cartridge was developed over 10 years and promises to deliver ‘next level’ performance from moving magnet technology. The Nd range (patent pending) is a world first to use an ultra-high powered Neodymium magnet which allow us to create this totally unique design.

Advanced Moving Magnet

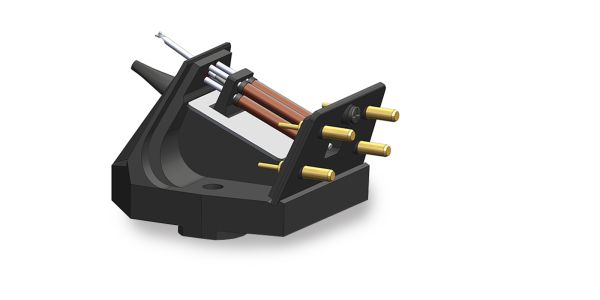

Each Nd5 is meticulously hand-made by our highly skilled technicians. The stylus profile is a perfect elliptical nude diamond. This is a true ellipse created by an elliptical grinding process made from polycrystalline manmade diamond. The design uses brand new generator geometry with perfect symmetry to achieve accurate channel balance. The Nd5 also has an optimised pole gap for superior linearity and cross talk characteristics. This provides a far wider soundstage than the previous models. This new cartridge is created with miniaturised parallel coils which are wound in house utilising 38-micron wire with just 1275 turns. This produces a low inductance, low impedance generator giving vastly improved high frequency response. In keeping with our commitment to sustainability, the Nd range is supplied in 100% recyclable packaging.

KEY FEATURES

  • Perfect elliptical nude diamond profile stylus
  • Aluminium cantilever
  • Neodymium magnet
  • Unique generator
  • Rega 3 point mounting system
  • Highly rigid lightweight PPS body
  • Handmade stereo cartridge
  • 100% recyclable packaging
  • Lifetime warranty against manufacture defects

TECHNICAL SPECIFICATIONS

Nominal Output Voltage
5-6mV
Stylus
Perfect elliptical nude diamond
Fixing
3 point fixing
Coils
Miniaturised parallel coils
Window Colour
Clear smoked
Tracking pressure
1.75g
Read More
SKU REND5S2433
