Q-Acoustics Concept 30 Standmount Loudspeaker
$1,299.00
Q Acoustics is not like most other loudspeaker companies.Q Acoustics is a young brand. No heritage. No tradition. No old black and white photographs. We believe that to be the secret of our success.
Q Acoustics was established in 2006; but not by a wealthy music lover, hobbyist designer or retired rock musician. No. Q Acoustics was founded by professional engineers and businessmen whose sole aim was to develop a highly successful best in class loudspeaker brand based on outstanding audio performance. It’s that simple, a completely focussed understanding of acoustic engineering and inspirational design has driven our remarkable success. We recognised that the only way Q Acoustics could possibly enjoy commercial success was to design and produce loudspeaker products that were, without question, superior to their similarly priced competitors. So, with that aim in mind, for the last ten years with have enabled audiophiles around the world to enjoy Q Acoustics for its innovative and high performance loudspeakers.
No artificial coloring
Every element of acoustic innovation featured in the Concept 30 is geared towards designing the quietest cabinet possible. Unaffected by internal and external resonances, these speakers deliver focused stereo imaging, accurate audio and an extended holographic soundstage to emulate a live performance in the home. All our anti-resonance innovations allow the state-of-the-art complement of drivers free to get on with the job of delivering the most realistic, most involving sound ever heard at this price-point.
Controlled power
Designed as an integral part of the mechanical structure of the cabinet, both the 5-inch mid/bass and 0.9-inch tweeter drivers are new, ground-up designs specifically for the Concept 30, 50 and 90 loudspeakers. The drive units are fixed to a remarkably stiff 3mm aluminum baffle plate before it is fitted to the cabinet – this gives the correct acoustic seal, dampening vibrations and minimizing structural coupling.
Elsewhere, the tweeter is hermetically sealed and mechanically isolated (floating) from the baffle, which means lower distortion and a lower crossover point for seamless integration through the crossover region. At 30.5mm, the larger mid/bass driver voice coil increases motor strength resulting in a 50% increase in power handling over a comparable driver with 25.4 mm voice coil.
Lastly, the crossover itself is mounted to the isolation base, keeping it free of sound-effecting vibrations and away from the electro-magnetic influence of the drivers themselves.
Elegant design

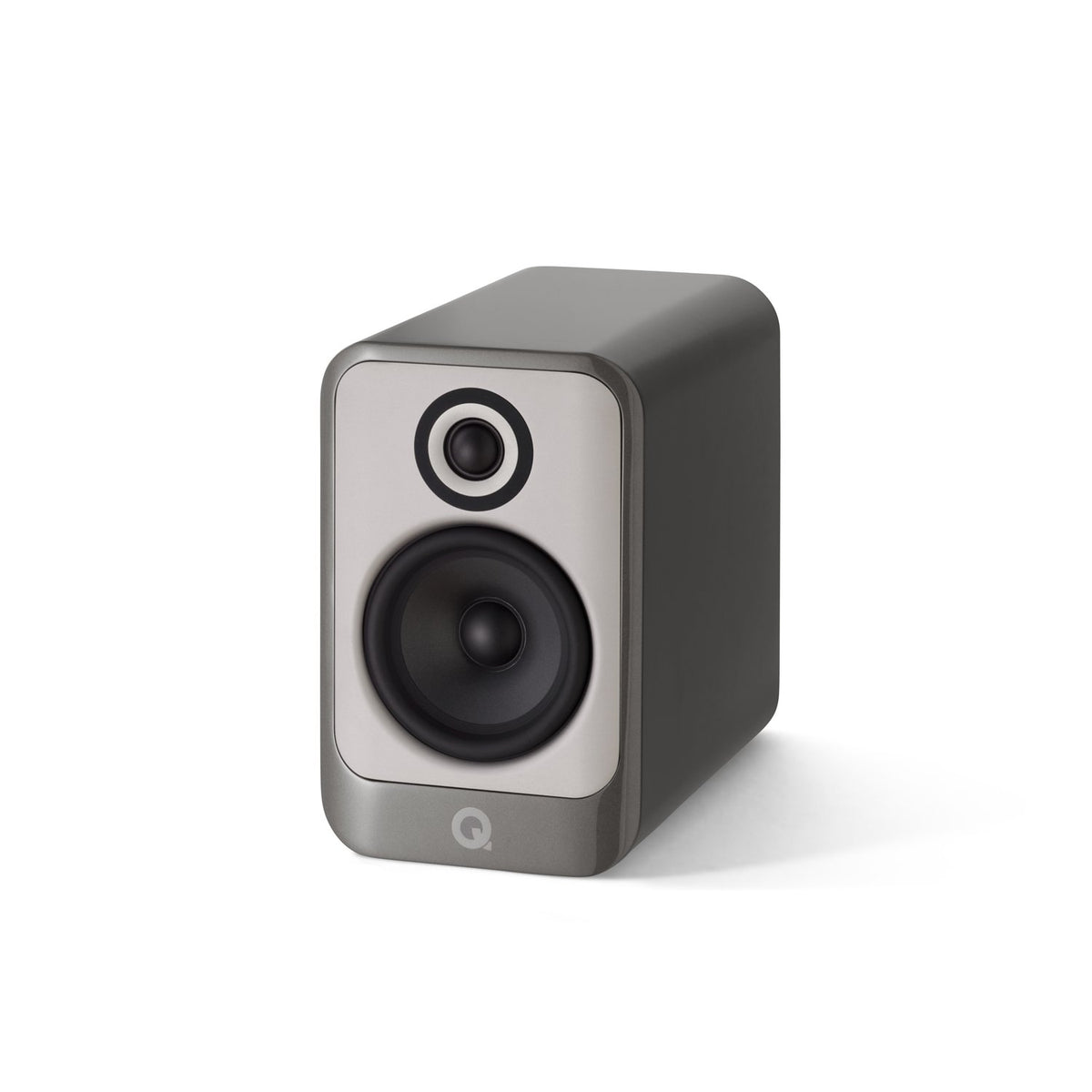

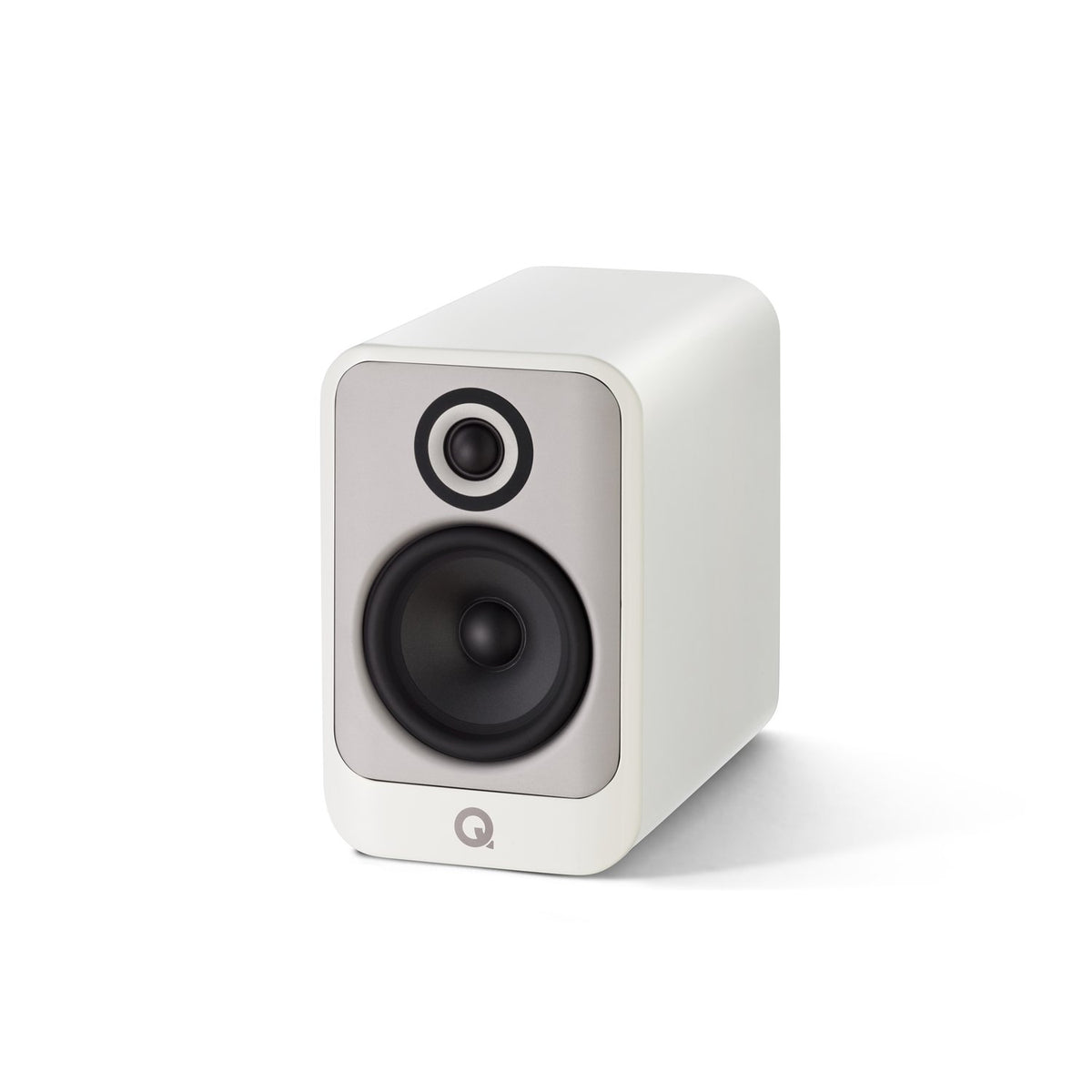

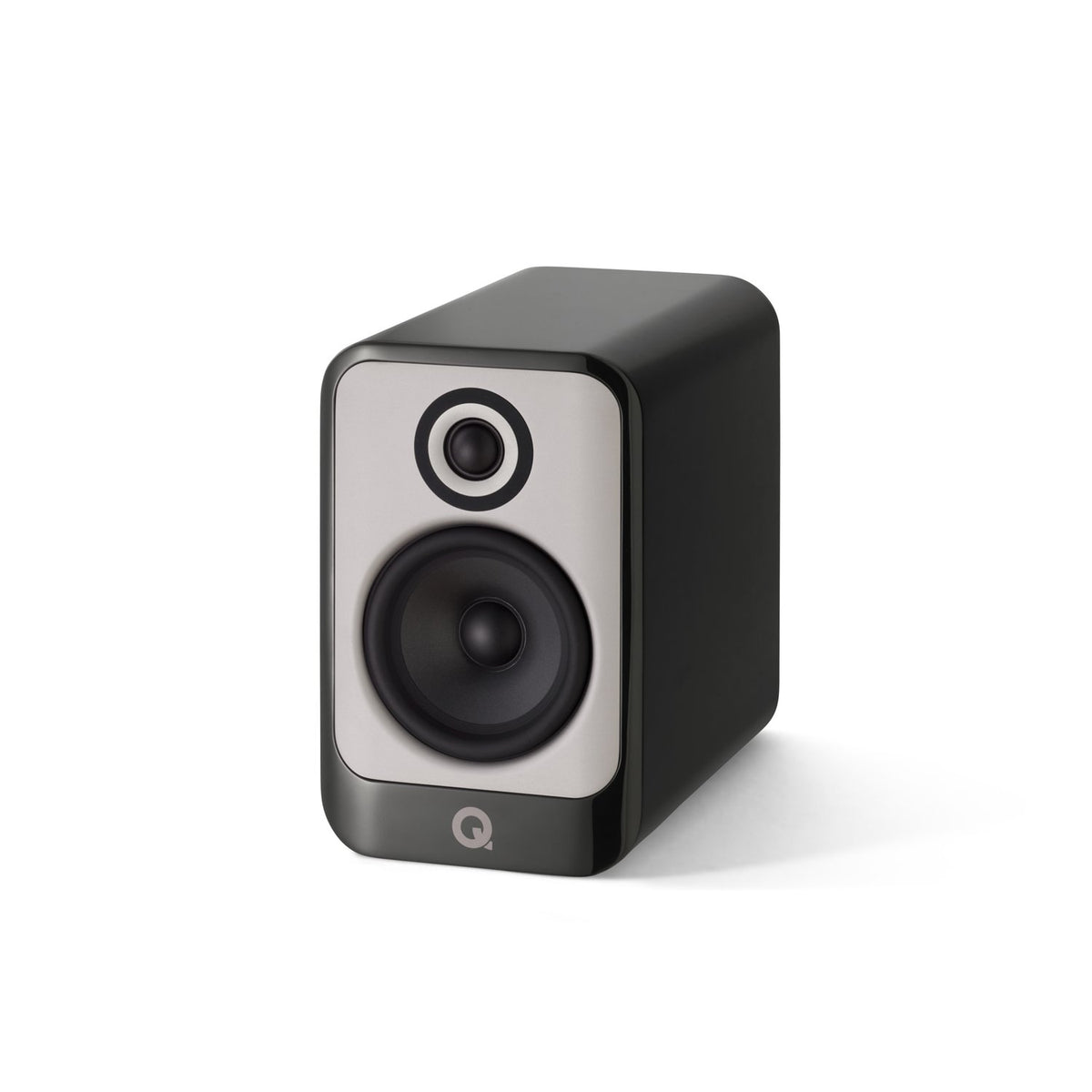

Boasting the same sophisticated design lines and stunning, premium high gloss finish of the top-of-the-range 300 and 500 models, the new range retains the signature aluminum front baffle plate that made the original Concept speakers so iconic. The Concept 30 arrives in three striking lacquers: black, silver and white.
Gelcore™ technology
Introduced in the original Concept speaker, the Gelcore™ cabinet construction is designed to minimize high-frequency noise. A unique design comprised of a non-setting gel sandwiched between two individual layers, this specially developed adhesive dissipates high-frequency vibrations, generated by the moving drivers, into heat to maintain a focused audio performance.
Isolation suspension system
A variation on the hugely effective ‘isolation base’ principle first seen on Concept 300 means the Concept 30 have a suspension system in the form of a sprung baseplate. Two plates are separated by suspension ‘spheres’ that effectively isolates the cabinet from interference from external vibrations, providing tighter stereo imaging, while also bringing greater depth.
P2P™ (Point to Point™) technology
To keep the cabinet as rigid as possible, P2P™ (Point to Point™) internal bracing is employed. First introduced in the Concept 500, reinforcement is fitted to interior areas of the cabinet susceptible to low-end frequency reverberations.
KEY FEATURES
- Gelcore™ cabinet construction reduces higher frequency cabinet noise.
- P2P™ (Point to Point™) internal bracing stiffens the cabinet to minimize lower frequency vibrations.
- Isolation suspension base eradicates unwanted external and internal vibrations.
- The driver assembly is mounted to the front aluminum baffle by pretensioned studs to give the correct acoustic seal, while dampen vibrations and minimize structural coupling of the assembly in main cabinet.
- Ground-up mid/bass and tweeter driver design for increased power handling.
- High-frequency driver is fully hermetically sealed and mechanically isolated (floating) from the front baffle to protect from internal resonances from the mid/bass driver.
- Crossover design is mounted on the isolation base, to minimize any microphonic pick up and away from electro-magnetic fields radiated by the drive units.
SPECIFICATIONS
- Bass unit 1 x 125 mm (5.0 in)
- Treble unit 1 x 25 mm (0.9 in)
- Frequency response(-6dB) 54 Hz – 30 kHz
- Nominal impedance 6 Ω
- Minimum impedance 3.9 Ω
- Sensitivity (2.83V @ 1kHz) 87 dB/w/m
- Recommended amplifier power 25-100 W
- Crossover frequency 2.4 kHz
- Distortion (120Hz – 20kHz, @2.83Vrms) <0.2%
- Effective volume 7.0 L
- Dimensions (per loudspeaker / HxWxD) 284 x 180 x 319 mm (11.2 x 7.1 x 12.6 in)
- Weight (per loudspeaker) 7.9 kg (17.4 lbs)
