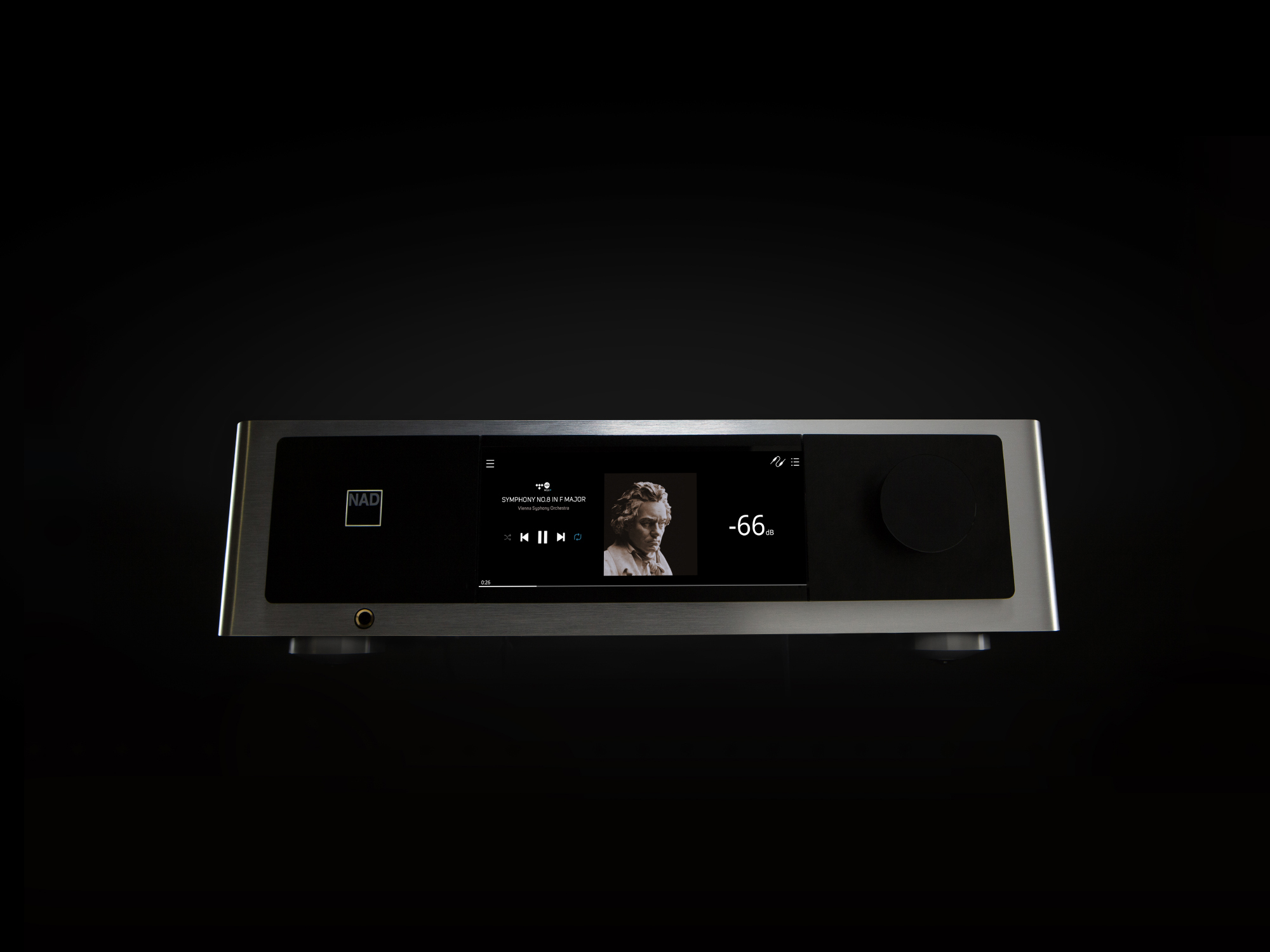

NAD Masters M33 BluOS Streaming Integrated Amplifier

$4,999.00


Description

In its simplest form, the M33 BluOS™ enabled DAC/amplifier is an ultra-high-performance streaming amplifier with superb audiophile sound. As a BluOS enabled component, the M33 can be combined with other players in a BluOS ecosystem of wirelessly networked music players throughout the home for an outstanding whole-home audio system. With the employment of the new Purifi Eigentakt™ Hybrid Digital amplifier technology, the M33 follows NAD’s long-standing tradition in identifying and developing cutting-edge amplification technology. With a minimum of 200W per channel on tap, the result is lifelike performance, exemplified by ultra-low distortion and noise.

Key Features of the NAD Masters M33:



    •

    • BluOS Streaming DAC Amplifier
    •

    • HybridDigital Purifi Eigentakt™ Amplifier Technology
    •

    • Continuous Power: 200W into 8/4 Ohms
    •

    • 32-BIT/384kHz ESS Sabre DAC
    •

    • Dirac Live Room LE Correction*
    •

    • Colour LCD touch display
    •

    • BluOS multi-room Integration
    •

    • 2 x MDC Slots for Future Expansion
    •

    • Wireless control with AirPlay 2 and aptX HD Bluetooth Integration
    •

    • Comprehensive digital and analog connectivity including HDMI eARC
    •

    • Integrates seamlessly with leading smarthome control systems
    •

    • MDC (Modular Design Construction) offers ability to upgrade to future digital formats as they become available. Two MDC slots provided.
    •

    • CI friendly- RS232 Serial Control Port. Trigger In/Out.
    •

    • IR In with learning function

*Some features will be available via a future software update; Full Dirac Live and Bass Control upgrades can be purchased through the Dirac Live software.

AMPLIFIER SECTION



    •

    • Rated output power (ref. 20 Hz-20 kHz at rated THD, both channels driven)
    •

    • >200 W into 8 ohms >380 W into 4 ohms
    •

    • Rated output power, Bridge mode (ref. 20 Hz – 20 kHz at rated THD)
    •

    • >700 W into 8 ohms
    •

    • Input sensitivity
    •

    • 865 mV (ref. 200W 8 ohms, Volume maximum)
    •

    • THD (20 Hz – 20 kHz)
    •

    • <0.003 % (1W to 200 W, 8 ohms and 4 ohms)
    •

    • Signal-to-Noise ratio
    •

    • >98 dB (A-weighted, ref. 1 W out in 8 ohms) >120 dB (A-weighted, ref. 200 W out in 8 ohms)
    •

    • Clipping power
    •

    • >210 W (0.1 % THD 1 kHz 8 ohms)
    •

    • IHF dynamic power
    •

    • 8 ohms: 260 W 4 ohms: 520 W
    •

    • Peak output current
    •

    • ≥25 A (in 1 ohm, 1 ms)
    •

    • Damping factor
    •

    • >800 (ref. 8 ohms, 20 Hz to 6.5 kHz)
    •

    • Frequency response
    •

    • ±0.2 dB (20 Hz -20 kHz) -3 dB at 60 kHz

PREAMPLIFIER SPECIFICATIONS

 LINE IN



  • Input Impedance (r and c)
  •

  • 47kΩ/180pF
  •

  • Input Sensitivity
  •

  • 280mV (ref. 500mV out, Volume Maximum)
  •

  • Maximum input level 20Hz-20Khz
  •

  • 2 Vrms/8 Vrms (low sensitivity mode)
  •

  • Tone Controls
  •

  • Treble: ±10dB at 10kHz Bass: ±10dB at 100Hz
  •

  • Max Output Signal
  •

  • 4Vrms (ref. 0.1% THD)

PREOUT



  • Maximum output level
  •

  • 3.9 Vrms (ref. 0.1% THD)
  •

  • Signal-to-Noise ratio
  •

  • >120 dB (A-weighted, ref. 2 V out)
  •

  • Output impedance
  •

  • 100 ohms

SUBOUT



  • Maximum output level
  •

  • 1.1 Vrms (ref. 0.1 % THD 100Hz)
  •

  • Signal-to-Noise ratio
  •

  • >102 dB (20 Hz-20 kHz, ref. 1V out)
  •

  • THD+N
  •

  • <0.005 % (refer 1.1 V 20 Hz-200 Hz)
  •

  • Output impedance
  •

  • 680 ohms

PHONO



  • Input sensitivity
  •

  • MM: 1.2 mV MC: 100 µV
  •

  • Input impedance (R and C)
  •

  • MM: 56 kohms/100 pF MC: 100 ohms/280 pF
  •

  • Signal to noise ratio (ref. 2 V Preout A-weighted)
  •

  • MM: >92 dB MC: >76 dB
  •

  • THD+N (ref 2V Preout 1kHz)
  •

  • MM: <0.003 % MC: <0.02 %
  •

  • RIAA response accuracy MM/MC
  •

  • ±0.2 dB 20 Hz -20 kHz

HEADPHONES



  • Output Impedance
  •

  • 2.2ohms
  •

  • Output power
  •

  • >100 mW/32 ohms

BluOS SECTION

 AUDIO



  • Supported audio file format*
  •

  • MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
  •

  • Supported high- resolution audio file format*
  •

  • FLAC, MQA, WAV, AIFF
  •

  • Sampling rate
  •

  • up to 192 kHz
  •

  • Bit depths
  •

  • 16 – 24

CONNECTIVITY



  • Network connectivity
  •

  • Gigabit Ethernet RJ45 Wi-Fi 5
  •

  • Supported network file share protocol
  •

  • Server Message Block (SMB)
  •

  • USB
  •

  • 1 x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals
  •

  • Bluetooth quality
  •

  • aptX HD 5.0
  •

  • Bluetooth connectivity
  •

  • Two-Way (Receive and Headphone modes)

USER INTERFACE



  • Supported operating system**
  •

  • Music playback from network shares on the following desktop operating systems: Microsoft Windows XP, 2000, Vista, 7, 8 to current Windows Operating Systems and macOS versions**
  •

  • Mobile Application
  •

  • Free BluOS Controller App available for download from the respective App stores of Apple iOS devices (iPad, iPhone and iPod), Android devices, Kindle Fire and Windows or macOS desktops
  •

  • Front panel
  •

  • 7-inch full colour touch screen
  •

  • Remote control
  •

  • HTRM 2 remote control

For supported music service and partners please see bluos.net

POWER CONSUMPTION



  • Auto Standby ON
  •

  • <0.5W
  •

  • Idle Power
  •

  • <40W

DIMENSIONS AND WEIGHT



  • Dimensions WxHxD **
  •

  • 435 x 133 x 396 mm (17 1/8 x 5 1/4 x 15 5/8”)
  •

  • Net Weight
  •

  • 9.7kg (21.4lb)
  •

  • Shipping Weight
  •

  • 18.4kg (40.6 lb)
