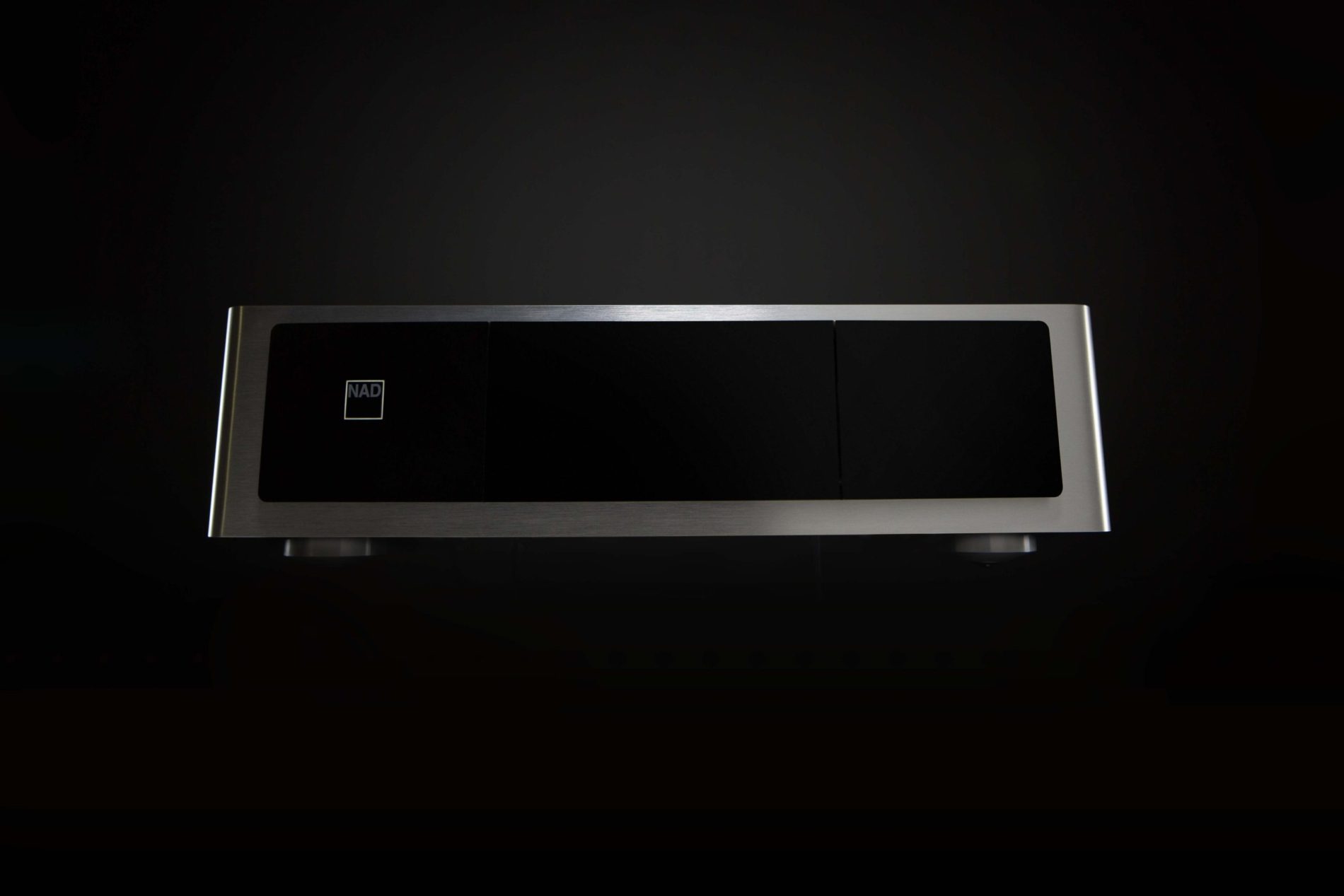

NAD Masters M23 Stereo Power Amplifier
$3,749.00
Building on NAD’s long tradition of identifying and developing cutting-edge amplification technology, the M23 HybridDigital Stereo Power Amplifier features Purifi Audio’s Eigentakt™ design, a once-in-a-decade innovation that virtually eliminates harmonic and intermodulation distortion. Noise is inaudible, for a completely black background and exquisite micro-detail. Conservatively rated at 2x200W continuous into 8 ohms and 2x380W into 4 ohms, the M23 can deliver live performance levels through any loudspeaker. With its unique combination of features, performance, and value, the M23 represents the new benchmark for the stereo power amplifier.
- HybridDigital Purifi Eigentakt™ amplifier technology
- Continuous Power Output: 2x200W into 8 ohms; 2x380W into 4 ohms
- Dynamic Power Output: 2x260W into 8 ohms; 2x520W into 4 ohms
- Bridged Power Output: 700W mono continuous into 8 ohms
- In bridged mode, can be combined with the NAD M33 BluOS Streaming Amplifier to create a 2x700W system
- Virtually unmeasurable noise, harmonic distortion, intermodulation distortion
- Wide, flat frequency response into any loudspeaker load

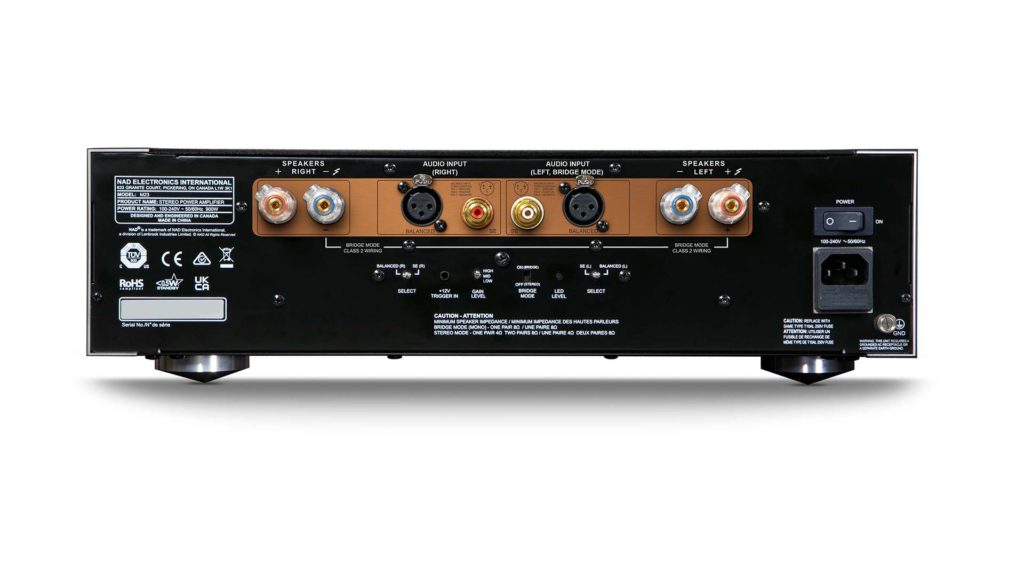

- Balanced (XLR) and single-ended (RCA) auto-sensing inputs
- Three-position adjustable gain control
- 12V trigger input
SPECIFICATIONS
- Input impedance (R and C)
- Single-ended: 56 kohms + 200 pF Balanced: 56 kohms +200 pF
- Frequency response (1W into 8 Ohms)
- ±0.06dB (20-20kHz)
- Rated output power into 8 Ohms and 4 ohms(Stereo mode) 80 W (ref. 20 Hz-20 kHz at rated THD, both channels driven)
- >200W into 8 Ohm, >380W into 4 Ohm
- Rated output power into 8 Ohms (Bridge mode, ref. 20 Hz-20 kHz at rated THD, both channels driven)
- >700W into 8 Ohm
- THD (20 Hz – 20 kHz)
- <0.00069% (XLR), <0.0013% (RCA)
- Signal-to-Noise Ratio
- >101.7 dB (1W into 8 Ohm)
- >127 dB (200W into 8 Ohm)
- Clipping power (Stereo mode, at 1 kHz 0.1 % THD)
- >210 W (0.1 % THD 1 kHz 8 ohms)
- Clipping power (Bridge mode, at 1 kHz 0.1 % THD)
- > 770W
- IHF dynamic power (Stereo mode, at 1 kHz)
- 8 ohms: 260 W
- 4 ohms: 520 W
- IHF dynamic power (Bridge mode, at 1 kHz)
- 1017W
- Peak output current
- >25 A (in 1 ohm, 1 ms)
- Damping factor
- >800 (ref. 8 ohms, 20 Hz to 6.5 kHz)
- Frequency response
- ±0.06 dB (stereo), ±0.054 dB (bridged) 20 Hz -20 kHz -3 dB at 60 kHz
- Channel separation
- High gain RCA: >97dB, Low gain XLR: >115dB (1kHz)
- High gain RCA: >75dB, Low gain XLR: >96dB (10kHz)
- Stereo Mode input sensitivity (for 200 W in 8 ohms)
- Low gain: 4.5V (low gain), 2.5V (Mid gain), 1.4V (High gain)
- Stereo Mode Gain
- 19dB (low), 23.9dB (mid), 29.2 (high)
- Bridge Mode Gain
- 25.1dB (low), 30dB (mid), 35.2 (high)
- Standby Power
- <0.5W
- DIMENSIONS AND WEIGHT
- Gross dimensions (W x H x D)
- 435 x 133 x 396 mm (17 1/8 x 5 1/4 x 15 5/8 inches)
- Net Weight
- 9.7 kgs / 21.4 lbs
- Shipping Weight
- 17.5 kgs / 38.5 lbs
