MoFi Electronics Studio DAC
$599.00
Designed in collaboration with Mytek Audio engineer Michal Jurewicz, made in the USA, and voiced by MoFi Electronics.
The StudioDAC supports DSD, DXD, and full MQA decoding + rendering!
StudioDAC Highlights:
•DSD, DXD, and 32-bit/384 PCM playback
•Custom Designed and Manufactured in the USA
•USB2.0, S/PDIF, and Toslink, inputs
•MQA Decode
•Outboard power supply

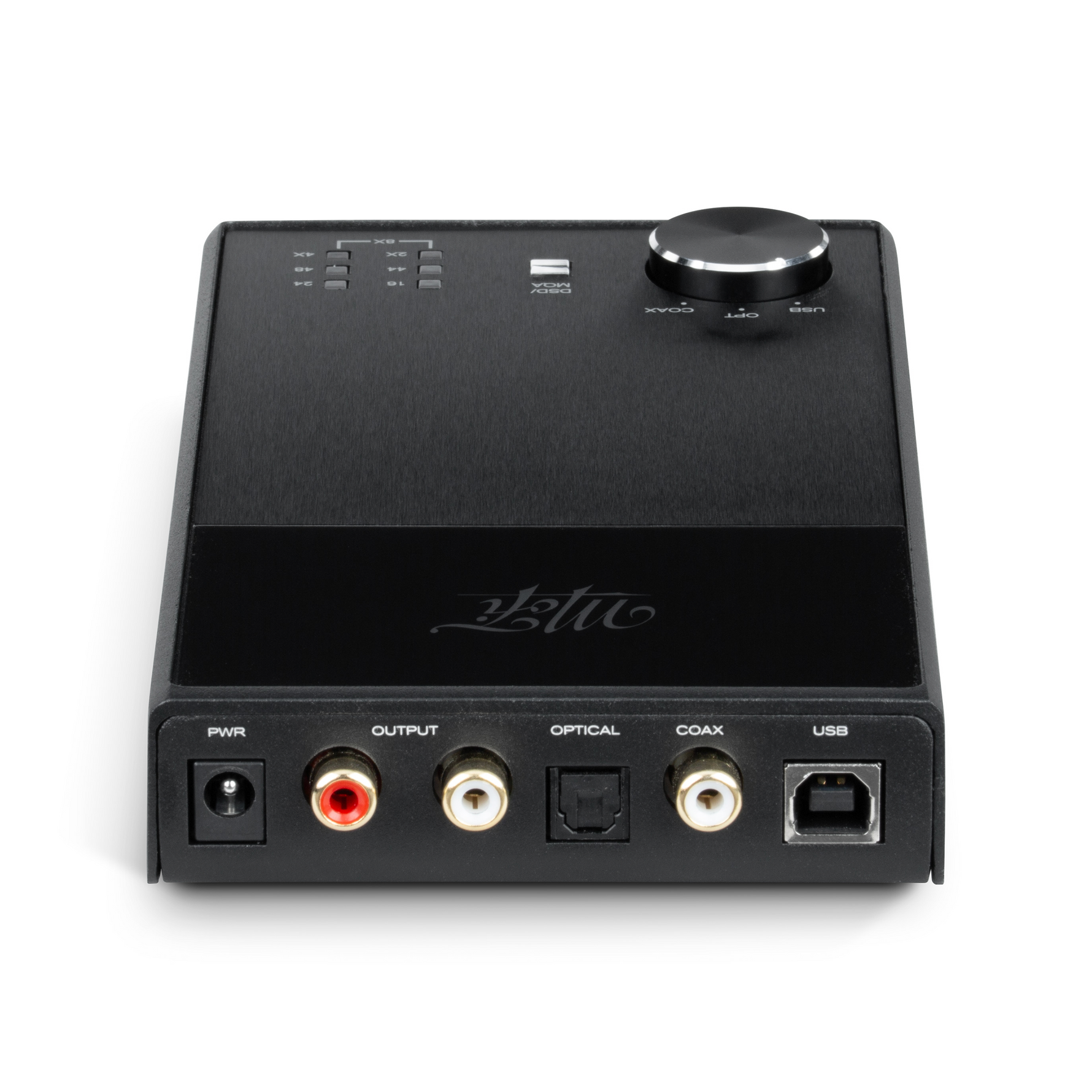

Digital Inputs: 1x coax (S/PDIF), 1x optical (TOSlink), USB B
D/A Converter: ESS9038Q2M
Sampling Rates: 32/44.1/48/88.2/96/176.2/192/352.8/384kHz
DSD Support (USB): DSD64, DSD128
DSD Support (COAX, Toslink): –
MQA Support: Full MQA decode + render by hardware
Bit Depth (USB): 16-32
Bit Depth (COAX, Toslink): 16-24
Frequency Response: 20Hz – 20kHz +/- 0.2db
Analog Out: 1x Fixed Level Out (RCA)
Output Voltage: 2.5 VRMS @ 0dbfs
THD+N: <0.002% 20-20Khz
Dynamic Range: 115dB (A-weighted)
SNR: >114dB (A-weighted)
Crosstalk @ 10KHZ: -110dB
Output Impedance: 75 Ohms (unbal)
Linearity: <+/-0.25db @ -110db
Power supply (external 100-240VAC): +12 Vdc 3.3 Amp center positive
Output (external 100-240VAC): 5.5/2.5mm barrel connector
