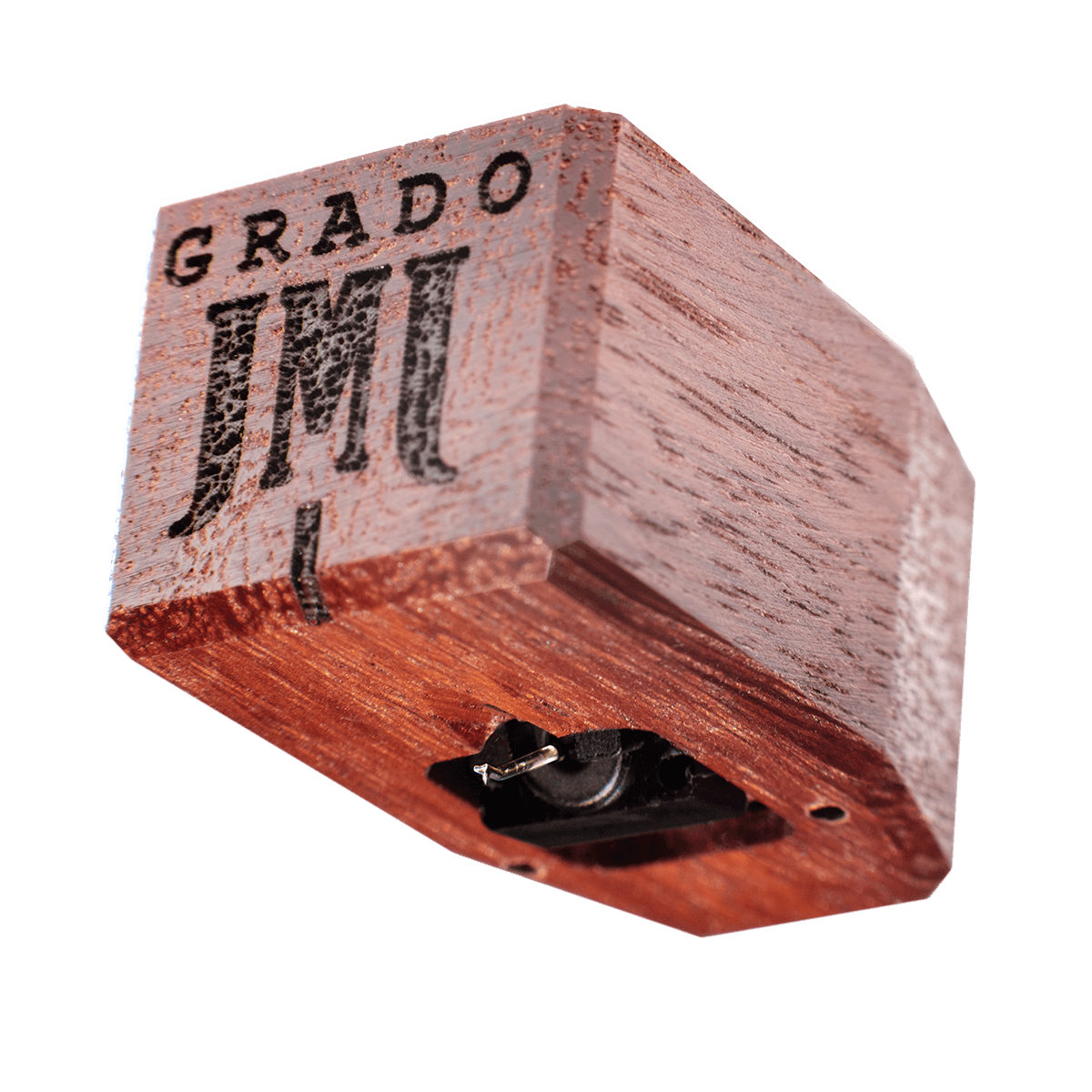

Grado Timbre – Sonata 3

The Platinum3 and Sonata3 models use a modified four piece OTL cantilever technology achieving a 10% tip mass reduction over the Prestige series and ultra-high purity long crystal (UHPLC) oxygen free copper wire in the coils. The Platinum3 model uses Grado’s specially designed elliptical diamond, and the Sonata3 model uses Grado’s specially designed nude elliptical diamond.
(Also available in mono versions, please call)


• Body: Australian Jarrah Wood



• Cantileaver: Aluminum / Elliptical Diamond



• Output: High 4.0mV @5 CMV (45) Low 1.0mV @5 CMV (45)



• Inductance: High Output 55mH Low Output 6mH



• Resistance: High Output 660 ohms Low Output 70 ohms



• Input Load: 10k-47k ohms



• Cartridge Weight: 9 grams



• Tracking Force: 1.6-1.9 grams



• Compliance 20μm/mN



• Channel Separation: Average 30db – 10-30k Hz



• Controlled Frequency Response: 10-60 KHz



• Non-Sensative to Capacitive Load



• Builds: High Output, Low Output, Mono
