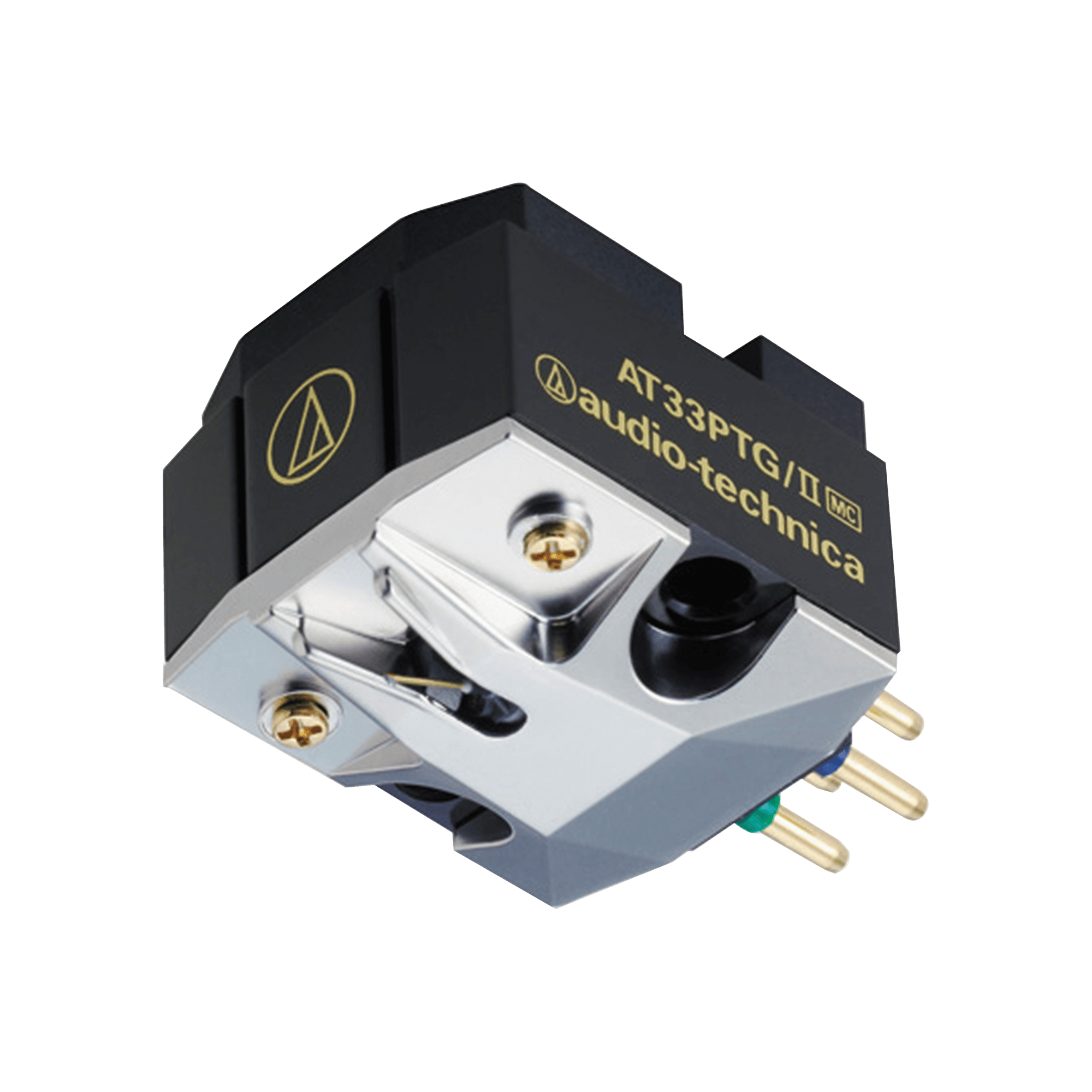

The AT33PTG/II dual moving coil cartridge features a Microlinear stylus that, with its small curvature radius, delivers low-distortion, high-range performance, even when playing the inner circumference of a record. The Microlinear stylus, which has an average life span of around 1,000 hours, is mounted on a nude tapered boron cantilever with a double damper for reduced weight and better audio quality.
The cartridge’s two coils provide excellent channel separation and are affixed within a strong, lightweight mold made of hard resin to greatly reduce unwanted vibration. The cartridge uses a neodymium magnet and a permendur yoke for dramatically enhanced magnetic energy. The PCOCC (Pure Copper by Ohno Continuous Casting) coils ensure pure audio transmission. Please Note: AT33PTG/2’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.
- Moving coil cartridge with Microlinear stylus delivers exquisite, full-range audio reproduction
- Advanced tapered boron cantilever and reduced coil weight improve the audio quality, particularly in the higher frequencies
- Neodymium magnet and permendur yoke dramatically enhance the magnetic energy
- PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer
- High-separation, wide-response dual moving coil
- Strong, rigid housing limits unnecessary vibration
- Precision-cast hard aluminum alloy body enhances rigidity and the signal-to-noise ratio
Please Note: AT33PTG/2’s stylus assembly is not field-replaceable, but Audio-Technica offers a fee-based Moving Coil Exchange Program to properly service your moving coil cartridge.
| Cartridge & Stylus |
| Frequency Response |
15-50,000 Hz |
| Channel Separation |
30 dB (1 kHz) |
| Vertical Tracking Angle |
23° |
| Vertical Tracking Force |
1.8-2.2 g (2.0 g standard) |
| Recommended Load Impedance |
More than 100 ohms (when head amplifier is connected) |
| Coil Impedance |
10 ohms (1 kHz) |
| DC Resistance |
10 ohms |
| Coil Inductance |
22 µH (1 kHz) |
| Output Voltage |
0.3 mV (at 1 kHz, 5 cm/sec) |
| Output Channel Balance |
0.5 dB (1 kHz) |
| Stylus Shape |
Microlinear |
| Cantilever |
Gold-plated nude tapered boron |
| Static Compliance |
40 x 10-6 cm/dyne |
| Dynamic Compliance |
10 x 10-6 cm/dyne (100 Hz) |
| Mounting |
Half-inch |
| Dimensions |
16.0 mm (0.63″) H × 16.6 mm (0.65″) W × 26.5 mm (1.04″) D |
| Accessories Included |
Non-magnetic screwdriver; 2 washers; 2 nuts; cartridge installation screws (13 mm × 2, 19 mm × 2); plastic protector; brush; PCOCC lead wire set |
| Mounting Feature |
Half-inch mount |
| Stylus Curvature Radius |
2.2 x 0.12 mil |
| Stylus Size |
Nude square shank |
| Weight |
6.9 g (0.24 oz) |
| Notes |
Note: Moving coil cartridges require receivers or preamps with compatible inputs; their stylus assemblies are not field-replaceable. |
