Advance Paris X-A220 EVO Mono Power Amplifier
$2,499.00
At Advance Paris, we craft audio experiences that transcend the ordinary, a harmonious blend of technology and artistry.
Born in 1995 from the dreams and passions of audiophiles, Advance Paris has consistently pushed the boundaries of high-fidelity audio. From the very beginning, we aimed to provide uncompromising sound quality at accessible prices, and our journey has been one of innovation and dedication to the art of music reproduction. Our amplifiers, CD players, preamplifiers, speakers, and more are not just products; they are the chapters in a sonic odyssey. With a touch of elegance, they deliver music that stirs the soul, as well as innovations that continue to redefine the listening experience.
Our new X-A220EVO monophonic power amplifier delivers 220W of power (at 8 ohms).

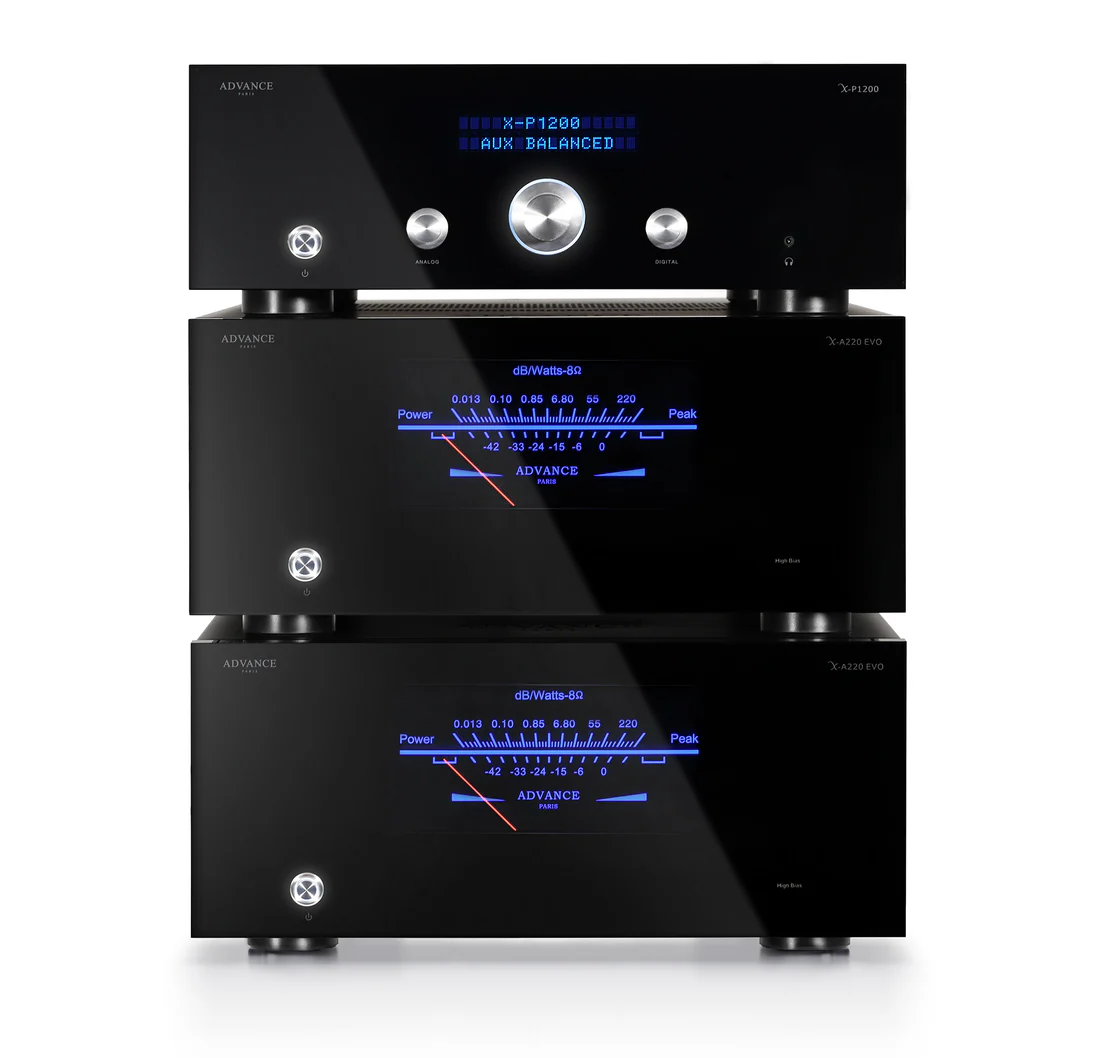

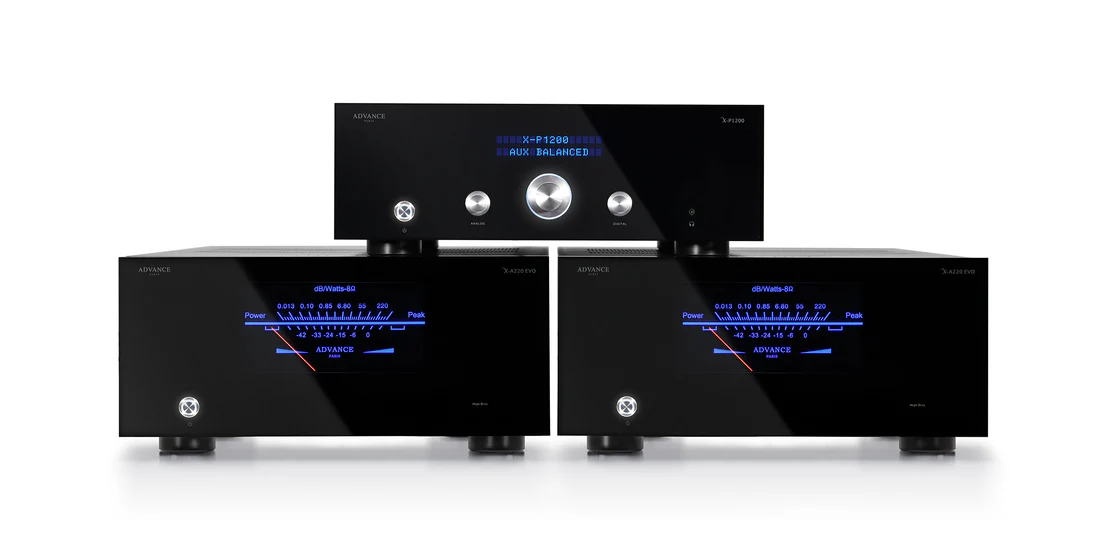

A pair of X-A220 Evo combined with our X-P700 pre-amplifier forms an highly musical Hi-Fi system at an exceptional value.
Engineering expertise in the design of our circuits allows us to achieve high level performance at a competitive price.

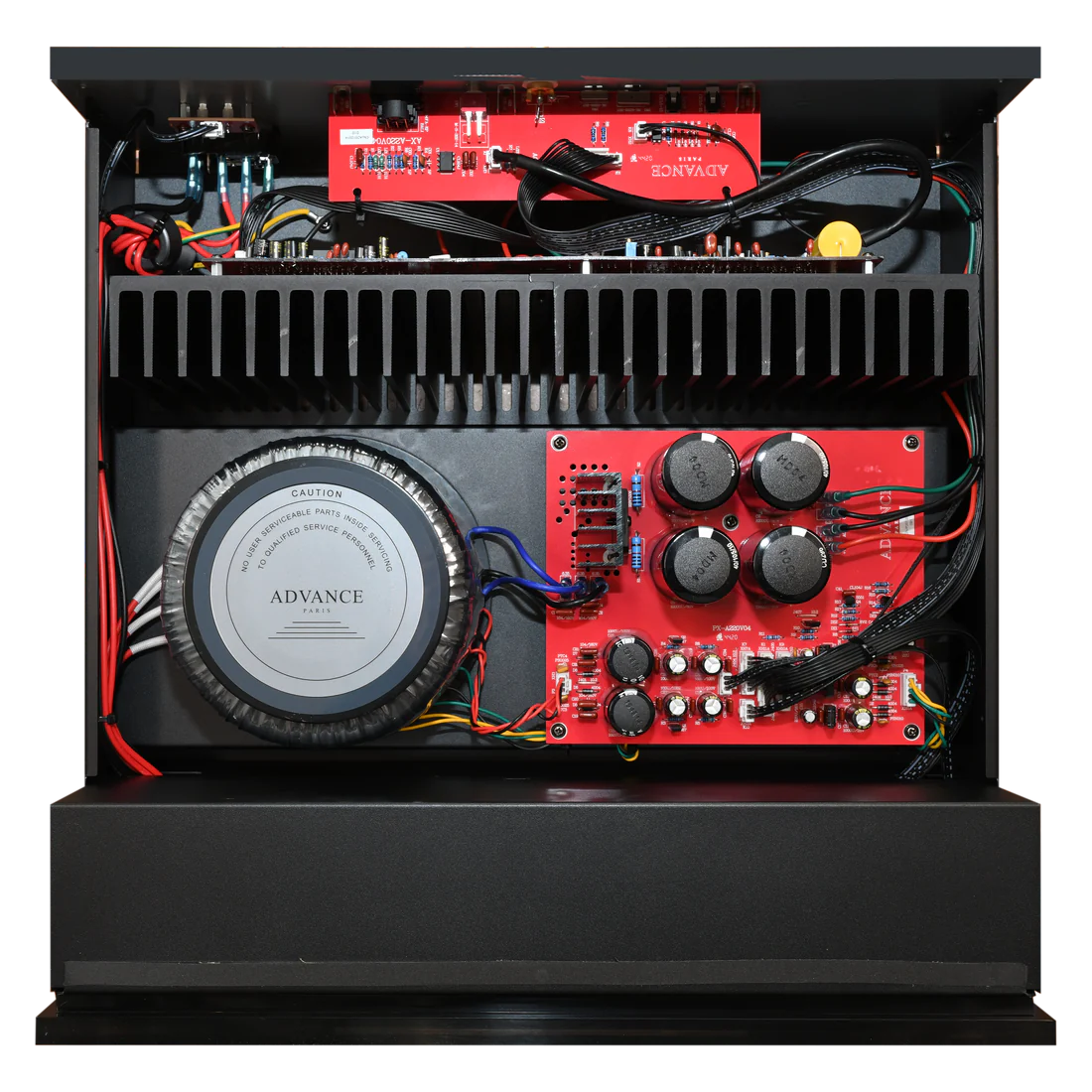

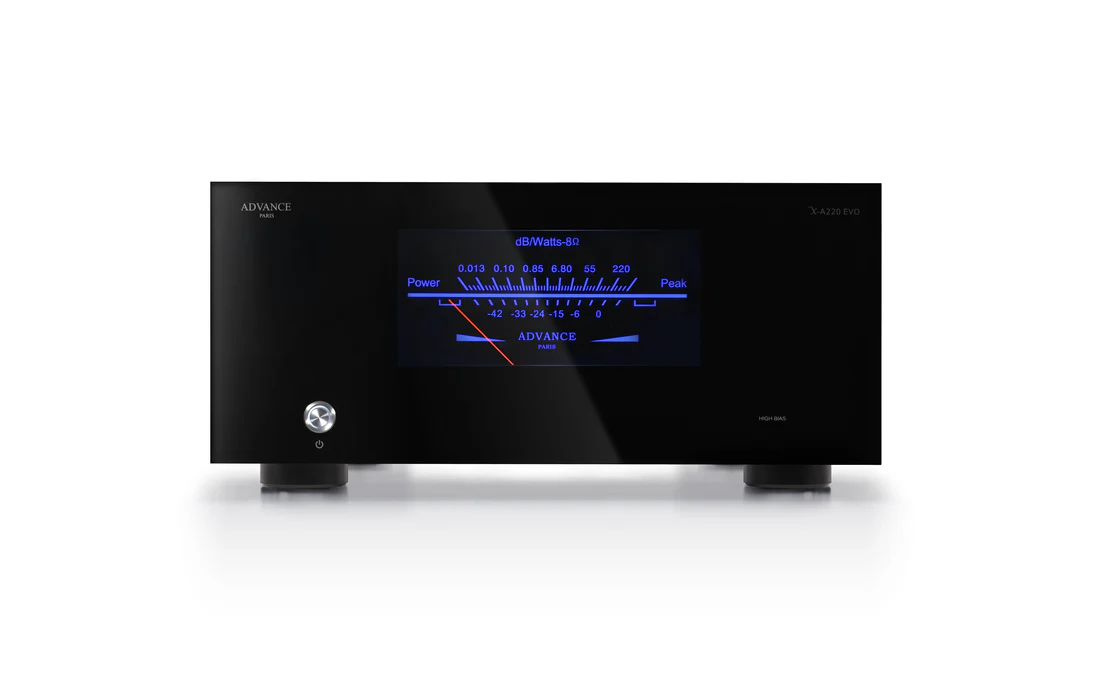

Construction: The steel frames provide a stable foundation. The addition of a methacrylate front panel results in a beautiful looking design showcasing the prominent Vu Meter. The interior layout is strategic and compartmentalized. This judicious arrangement of the various sub-assemblies and choice of quality components, soldered on separate PCBs and partitioned by function provide the basis for excellent sound quality.
The X-A220EVO’s substantial height follows the requirement of the generously sized power transistor heatsink.

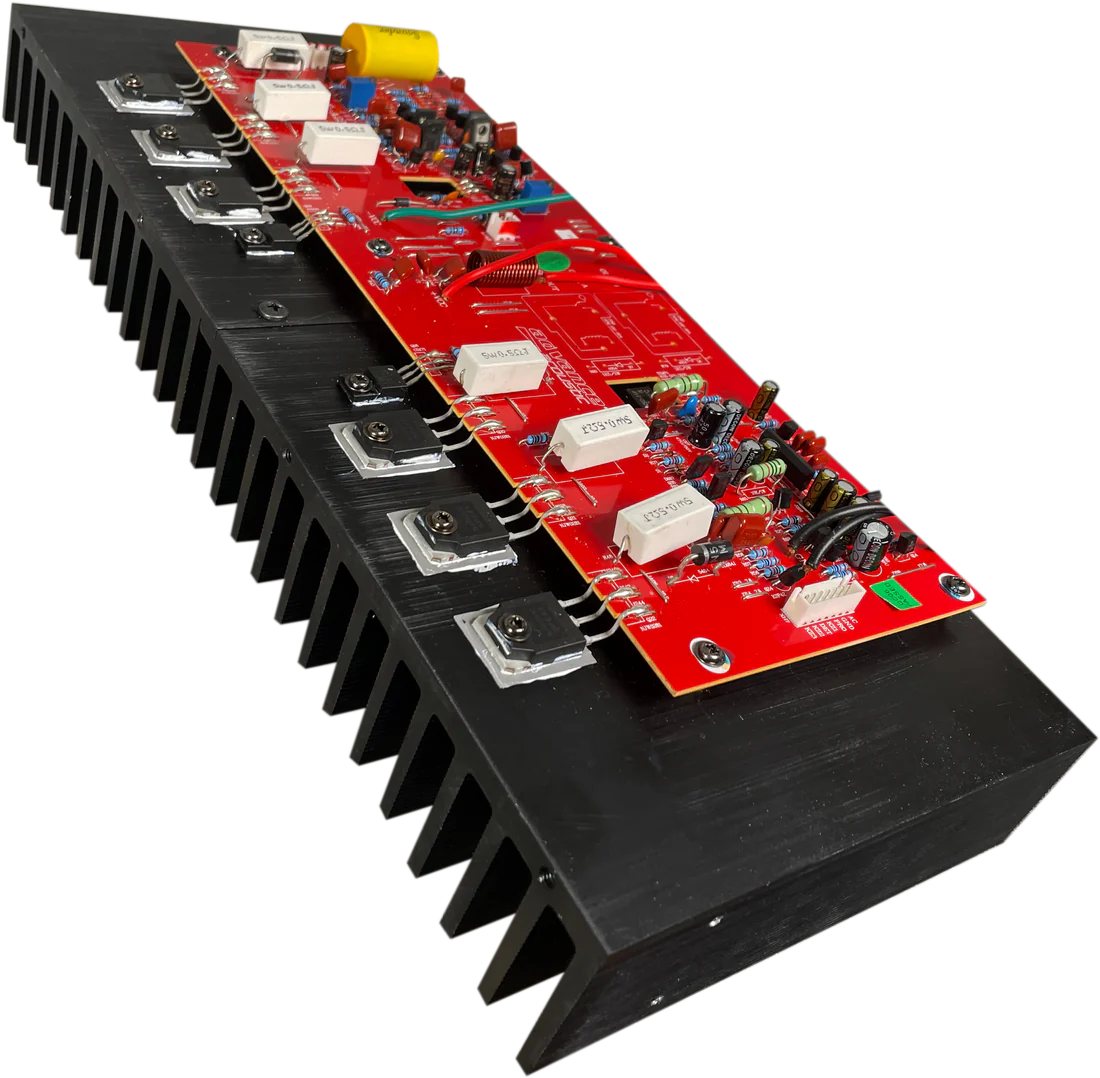

The X-A220EVO has a 700 VA toroidal transformer. After rectification, four 10 µF / 000 V capacitors smooth the direct current. The power stages call for a triple push-pull of complementary NJW80G / NJW0281G transistors, delivering up to 220W (8 ohms) in class AB.
The amplifier can operate in two modes accessible via a switch: when the High Bias function is engaged, the X-A220EVO operates in “class A” on the first Watt then automatically slides to class AB.
Specifications
| Output power 8Ω | 1 x 220W RMS |
|---|---|
| Output power 4Ω | 1 x 350W RMS |
| Bandwidth | 10 Hz – 80 kHz |
| Distortion | <0,08% |
| Signal to noise ratio | > 100 dB |
| Channel separation | > 80 dB |
| Imped. Asymmetric input | 32 KΩ |
| Imped. input Symmetrical | 38 KΩ |
| Mains voltage | 115-230V |
| Standby consumption | <0,5W |
| consumption max. | 500 |
| Transformer power | 700 |
| Transformer | Toroidal |
| Height | 200 mm |
| Width | 430 mm |
| Depth | 450 mm |
| Net weight | 21 Kg |
| Product Type | power block |
| VU-Meter | Yes |
